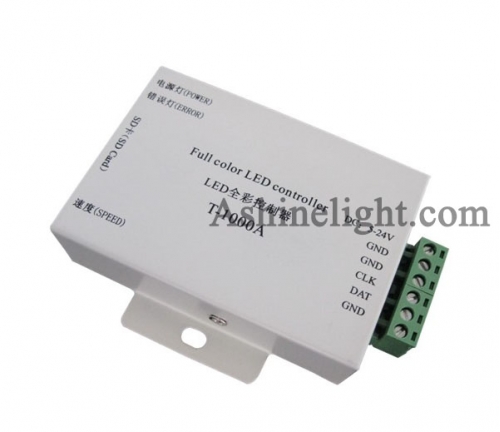

Full Color Led Controller

System features
● 32—256 Gray level，Support software Gamma correction。
● Support the rules and special-shaped handle.
● Single-port output，can support 2048 pixels。
● Off-line(SD Card) control, play back content stored in the SD card.

Technical Specification:
Memory card
●type：SD card（suggest using high-speed SD card）
●Capacity：128MB—2GB
●Format：FAT
●Store file：*.led

Physical Specification：
●Working temperature ：-30℃—85℃
●Working voltage：AC、DC 5-24V
●Working power：2W
●Size: 90mm×W86mm×H25mm
●signal port：3pin connect port

Support chips：
LPD6803,D705,1101,6909, 6912,UCS1903,UCS1909,UCS1912,WS2811,WS2801,WS2803,DMX512 etc..

NOTE：
● When the controller control less than 512 lamps the frame rate can reach 30fps. When T-1000S control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.
● This controller can only be a single use；
● This controller is Single-port output，Can control up to 1024 lamp；
● When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.
● If you need to control a new IC type by the controller， software code mode is：T-1000-IC model
● FILE SAVING：Controller can save one file only!
