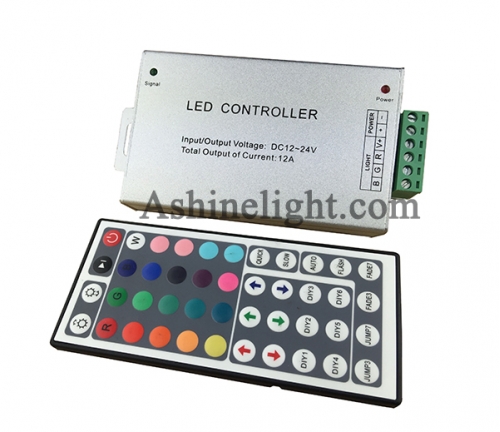

IR RGB 44key Led Controller
Product Name: IR RGB 44key Led Controller
Model: SYC-IRL44
brief: Used to controlle all kinds of constant voltage led lights
Enquiry:
Model: SYC-IRL44
brief: Used to controlle all kinds of constant voltage led lights
Enquiry:
Products Discription:
Infrared aluminum shell 44 key infrared controller (upgrade) adopts advanced microcomputer control, used to control a variety of the LED light source which has the advantages of simple connection, convenient to use; can speed adjustment, brightness adjustment by the infrared remote controller, DIY color, color selection and various static dynamic lighting effect.

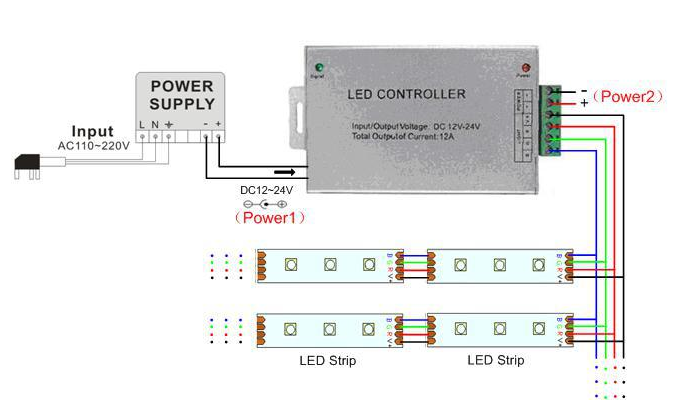

Wire Connection:
Technical Specification:
●Model: 44 keys Aluminum LED controller
●Working temperature: -20-60℃
●Power Supply:DC5V~24V Optional(PWM)
●Function Model:34 models
●Output:3circuits
●Connecting Model:common Anode or cathode(optional)
●External Dimension:L95ΧW89ΧH26 mm
●Net Weight:160g
●Static Power Consumption:<1W
●Load Current:4A/ch
●Output power:5V<60W,12V<144W,24V<216W
Operation method:
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controller and receiver.
Caution:
1. Supply voltage of this product is DC12V/24V, never connect to others or AC220V.
2. Before using the infrared remote, the insulating film should removed.
3. Lead wire should be connected correctly according to grade that connecting diagram offers.
4. This product is not to overload;
