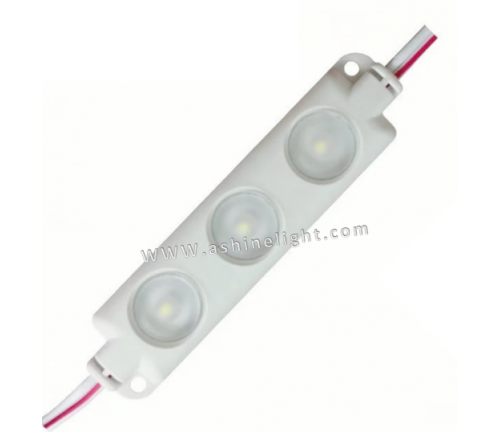

Original Samsung SMD2835 3Leds Signage Module


Products Feature:
●Adopting Original Sumsung SMD2835 as light source---with high luminous Flux & color consistance
●Secondary optic design 170 degree visual angle, no light dots good light uniformity
●Best sealed IP65 with moisture-proof, waterproof, dustproof and impact resistance
●Adopting PVC injection molding technology, with nice structure & design

Application:

●8-15cm thickness channel letter and light box back lighting.
●Best for 12cm depth small size light box and channel letter backlighting.





Installation
●Clean & remove all debris from the inside of signage/lightbox
●Position the module with double sided tape and stick on the back of board
●Potting glass glue on both side of led module or screwing is recommended as security.
●Use screws ,or silicon to secure at least every fifth LED module within the channel letter
