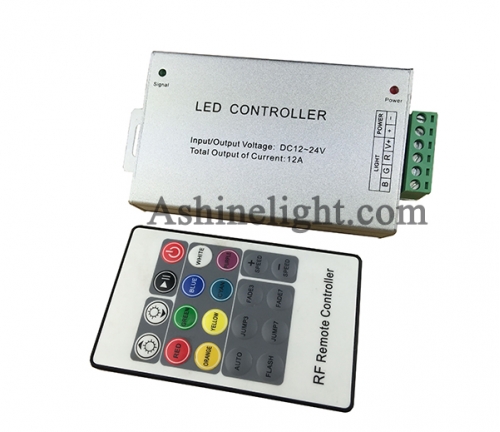

RF RGB 20key Led Controller
Product Name: RF RGB 20key Led Controller
Model: SYC-RFL20
brief: Used to controlle all kinds of constant voltage led lights
Enquiry:
Model: SYC-RFL20
brief: Used to controlle all kinds of constant voltage led lights
Enquiry:
Products Description:
Wireless RF 20 Keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement.
Technical Specification:
● Working Temperature: -20-60°C
● Input voltage: DC12-24V optional
● Output: 3 circuit
● Connection mode: Common anode or Cathode
● Controller size: L102.5*W65*H30MM
● Net weight:190g
● Function Model: 14models
● Static power consumption: <1W
● Output Current: <4A/ch
● Output Power: 12V/4A<144W; 24V/4A<288w
.png)
Direction for using:

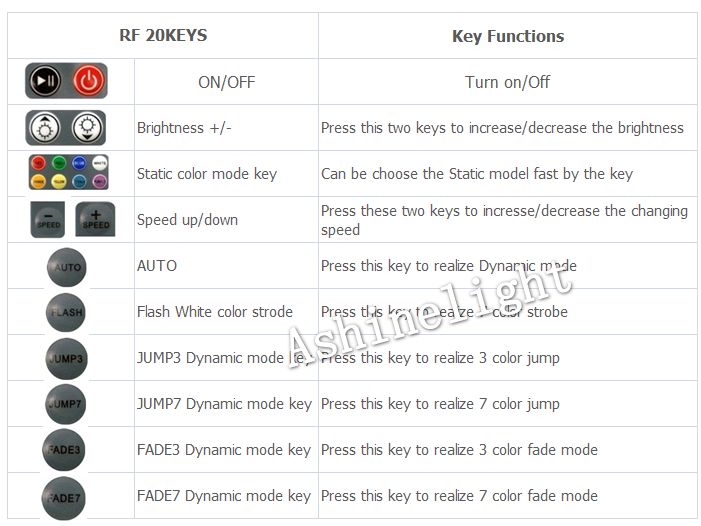

1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power； 2. Operation: you will receive remote control in front of receiver to ensure that there is no barrier between the remote controller and receiver. 3.The key-press functions are shown in the table as below (in accordance with the key position order):
