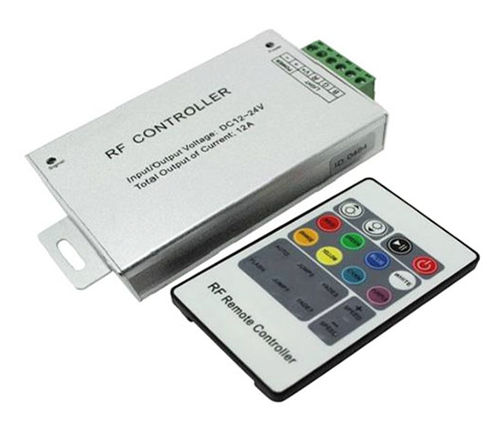

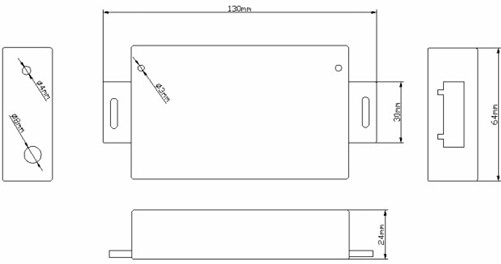

RGB Controller RF 20K

Introduction
RF/IR  wireless LED Controller Series is universal RGB Integrated controller,
can be controlled any angle (within the rated range), adopt most advanced
PWM digital adjusting technology; various shells are available
(metal\aluminum\plastic), touched function button, elegant appearance,
capable of controlling all four cabled three channels LED RGB lighting
products, widely apply to both commercial and household applications;
such as RGB LED modules, LED strip, SMD Flex-strip etc.

Electrical Specification
◆ Working Voltage :DC5V,DC12-24V
◆ Working temperature: -20-60 ℃
◆ Output: 3 channels
◆ Connecting mode: Common anode
◆ Transmission/Receiving frequency: 433 MHz
◆ Static power consumption: <1W
◆ Output current: 3*4A or 3*8A.
◆ Max output power: 4A:5V<60W;12V<144W;24V<288W
     8A:5V<120W;12V<288W;24V<576W


Operation Instruction
1. Connect the load wires at first, following by the power wires; Please ensure that short circuit cannot occur between connecting wires before you turn on the power

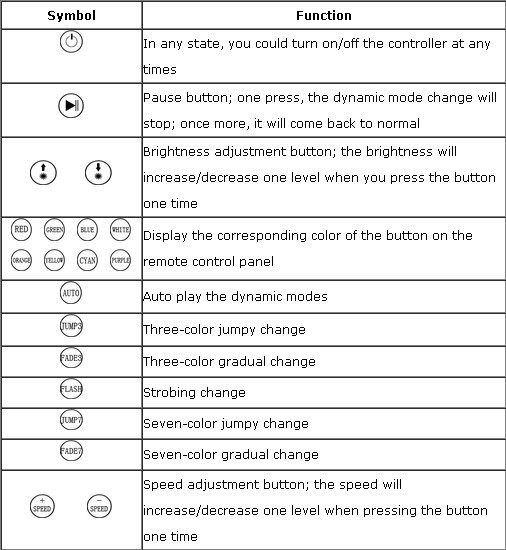

2. Adopt RF control method, function of each button as below:

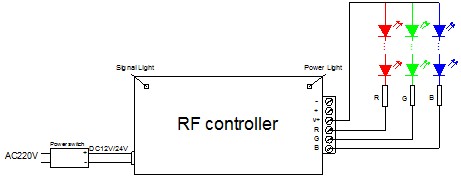

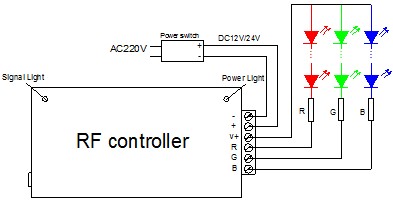

Connecting Diagram
Method 1


Method 1
