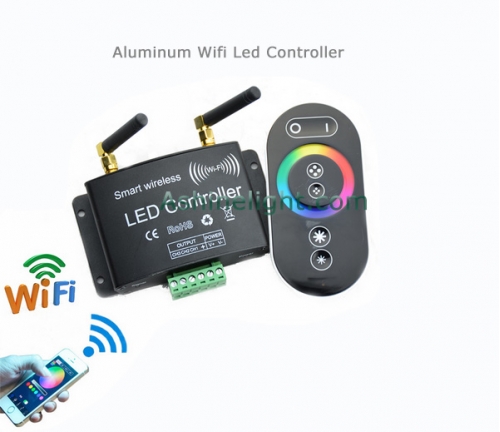

WIFI Aluminum Led Controller

Remote Controller technical specification:
●Working temperature: -20-60°
●Power supply method: AAA*3
●Supply voltage: 1.5v*3
●Standby power: 0.015mW
●Standby current: 3uA
●Working current: 200uA
●Emission current: 10mA
●Remote control distance: around 20M
●Standby time: 6 month

Software Technical Specification:
●Runtime platform: Android version support Android system 2.2,IOS version support IOS system 6.0, equipment must have Wifi function.
●Byte: Android version(3.57M),IOS version
●Language: English/Chinese
●Category: Communications

Controller Technical Specification：
● Working Voltage: DC12-24V
● Output control: can be flexible control 3 channel,2 channel, 1channel l ed lamps
● Output current: 4A*3/4A*2/4A*1
● Connection mode: Common anode
● Controller size: L108*W85*H29MM
● Net weight:430g
● Receiving sensitivity: 802.11b DSSS(-5dBm)/802.11b CCK(-10dBm)/802.11g OFDM(-15dBm)

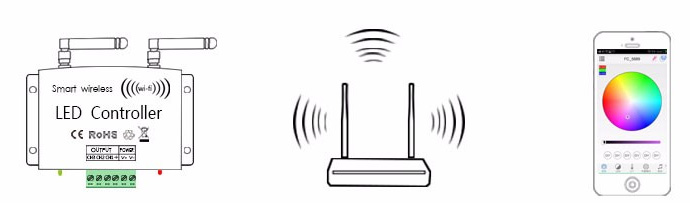

Connection Schematic


Install power supply and Led lights
